Garden Lounge Modern Art 2
Gallery
Galerii (Ruudud):
Let light into your life!

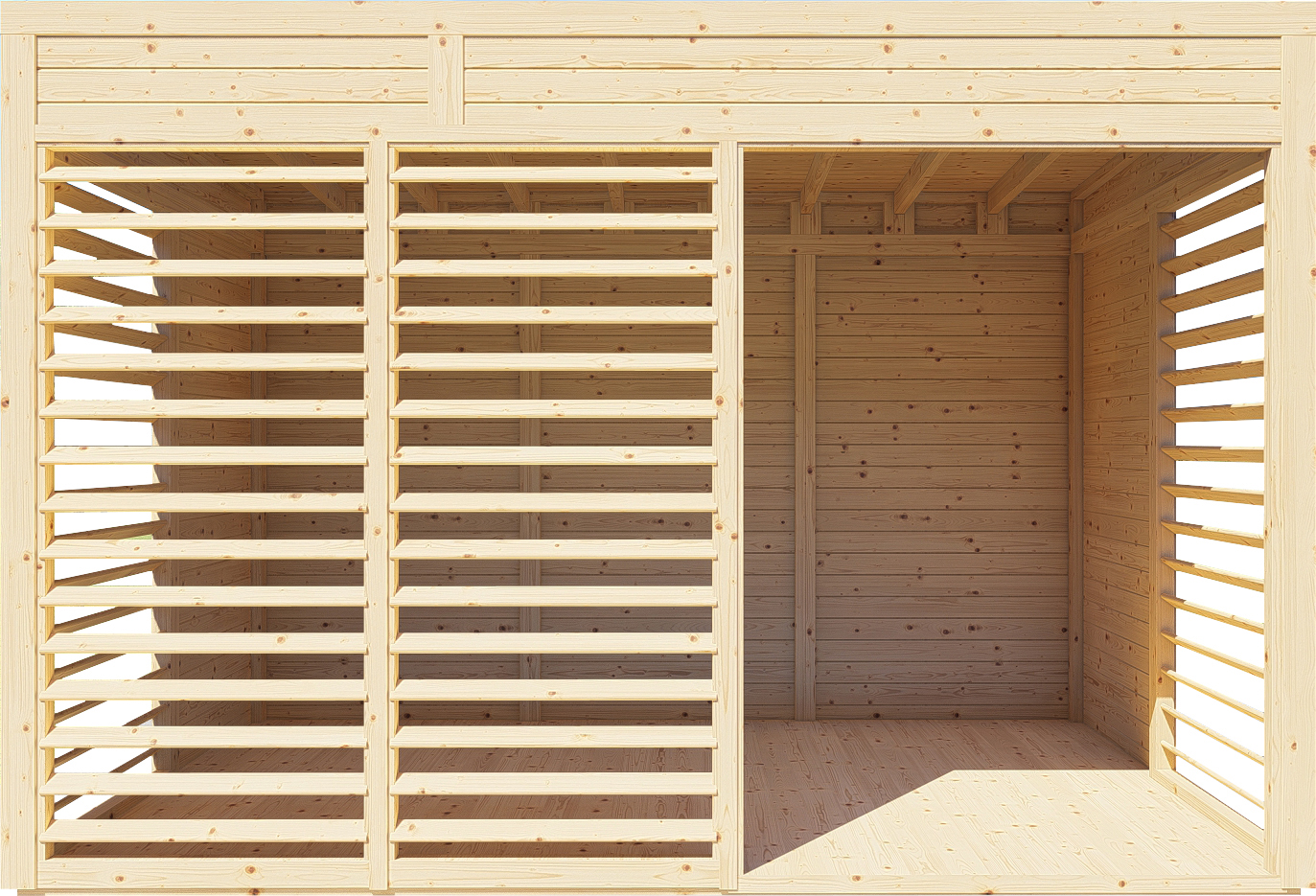

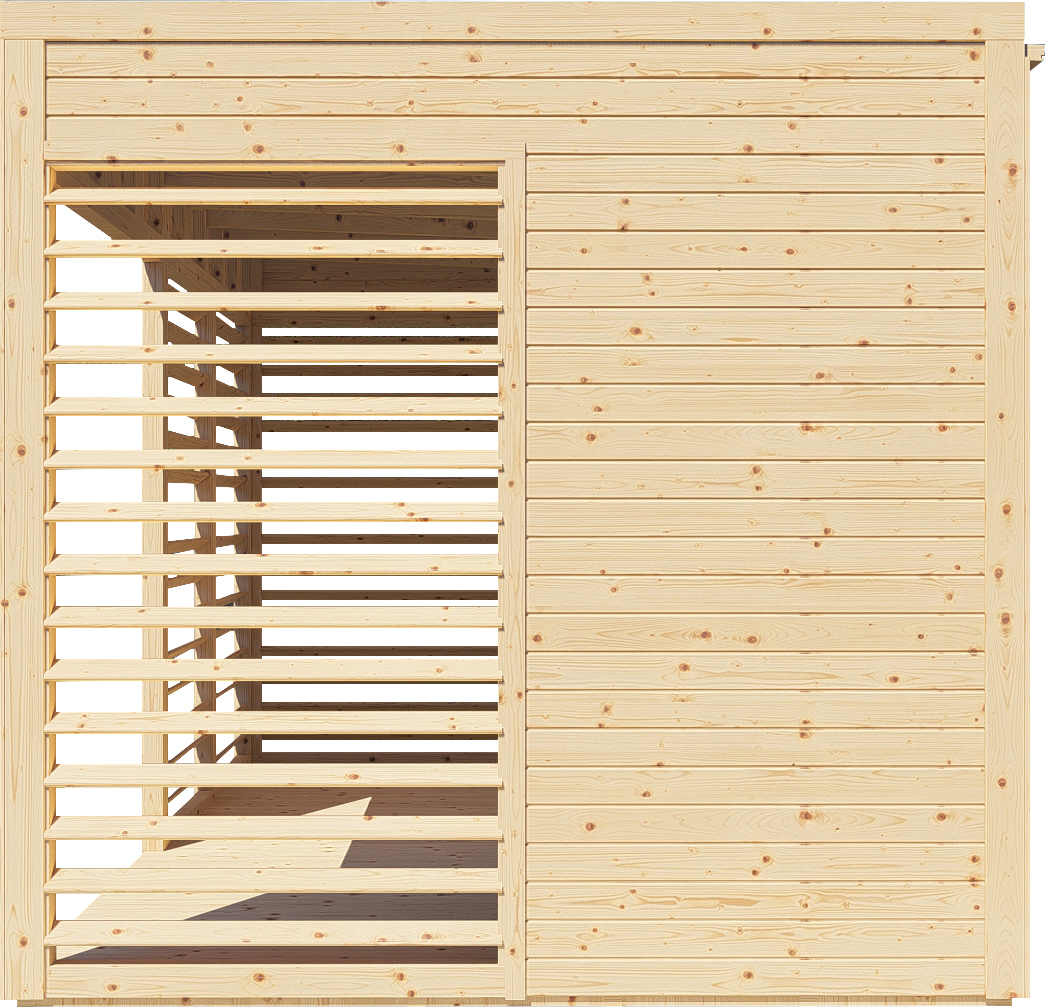

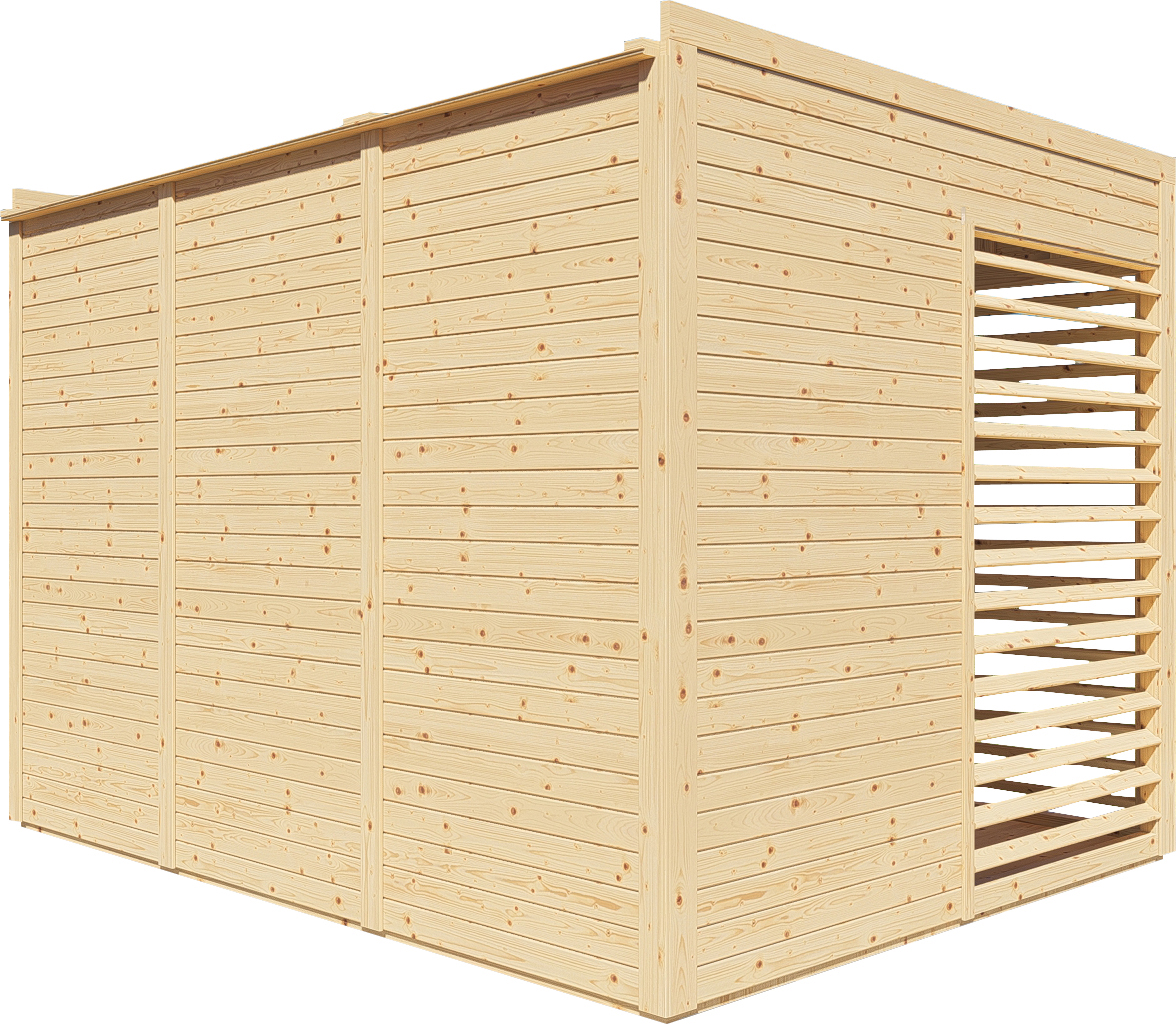

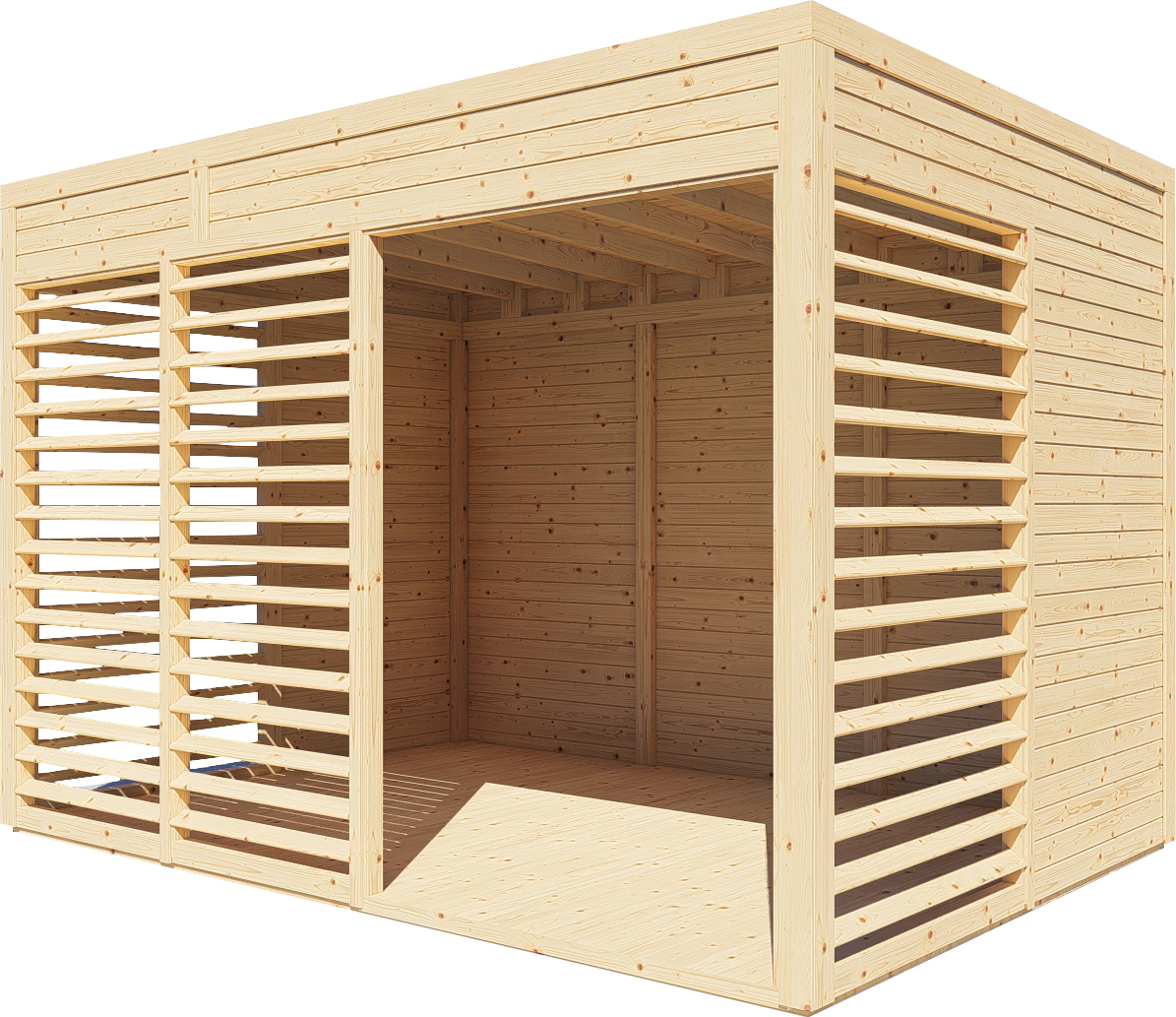

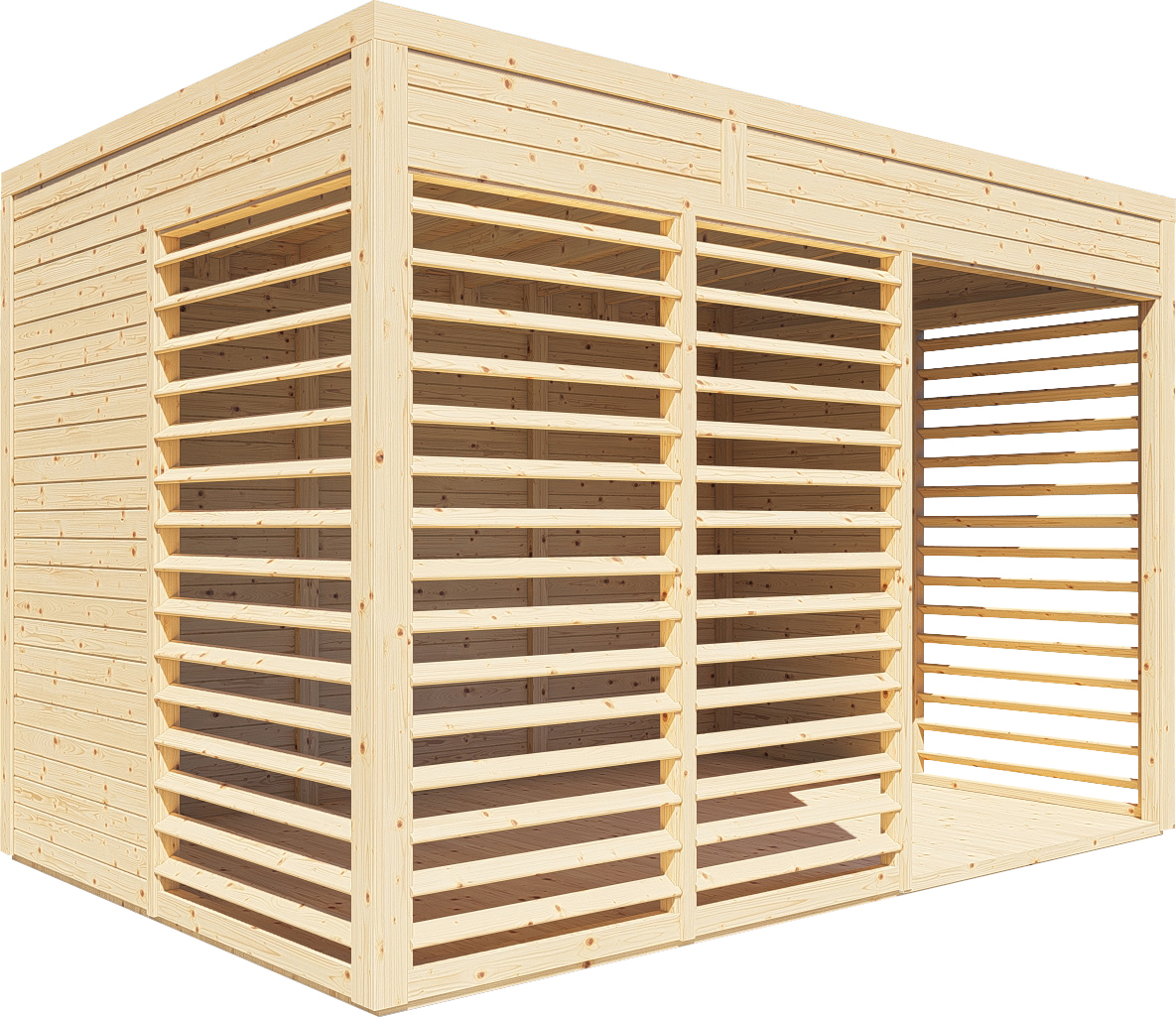

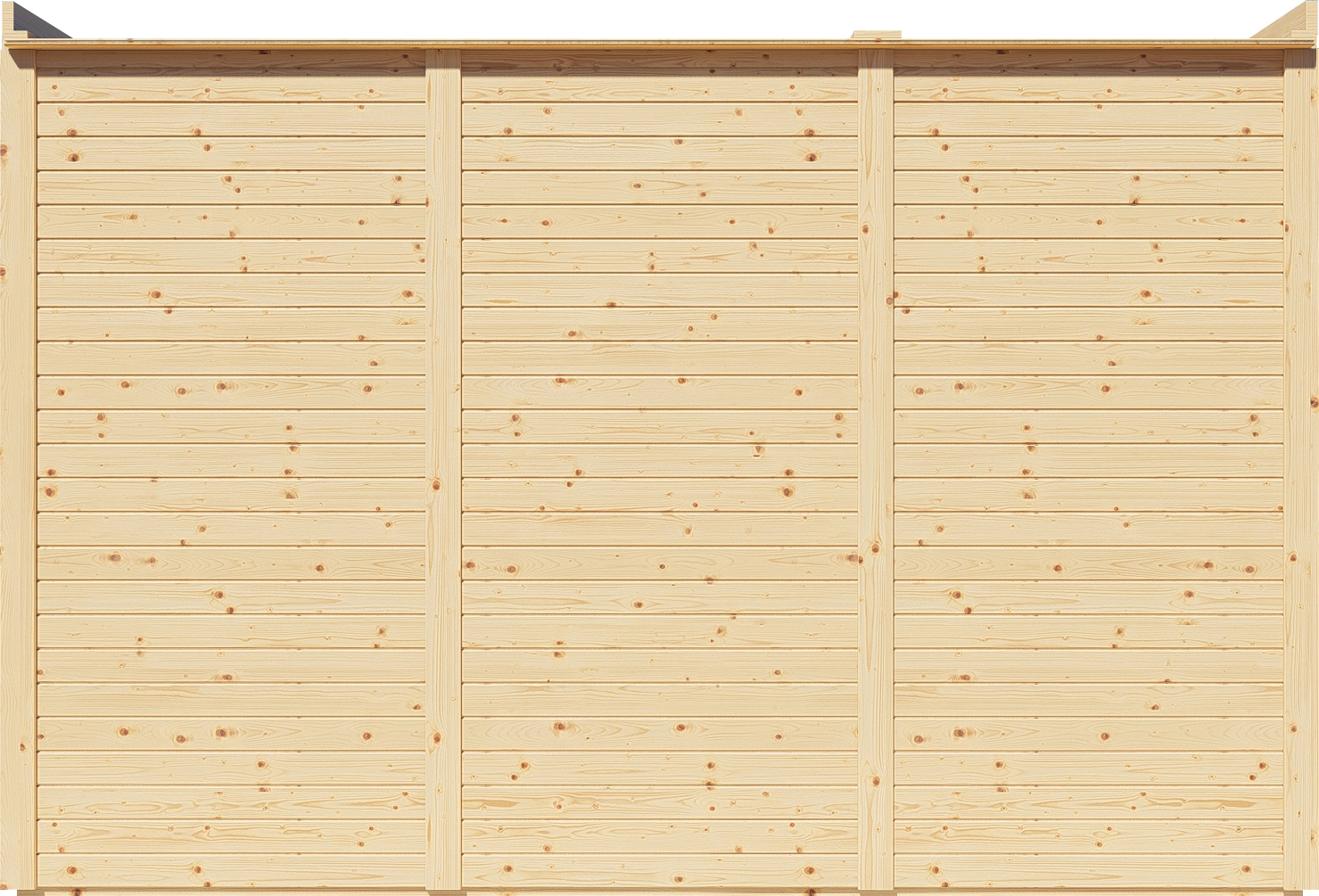

A modern pavilion in element construction with
privacy slats.
The clever design
with a floor area of 2.34 x 3.37 m and a height of 2.32 m results in plenty
of space for hours of relaxation in the garden. Thanks
to the slightly slanted slats, a garden lounge is created that is light and
open jet retains a degree of privacy.
The complete element construction including solid wood floor enables easy assembly.
THE DELIVERY INCLUDES:
Floor and roof elements made of 19 mm solid wood.
- Complete kit.
| Product details | Dimensions |
|---|---|
| Wall dimensions W x L without roof overhang | 337 x 234 cm |
| Floor area | 7.9 m2 |
| Ridge height (max) | 232 cm |
| Volume | 16.8 m3 |
| Wall thickness | 19 mm |
| Wall area | 15.1 m2 |
| Roof thickness | 19 mm |
| Roof area | 7.9 m2 |
| Roof pitch | 2.2 ° |
| Snow load | 1.6 kN/m2 |
| Door opening | x cm |
FoundationThe most important prerequisite for the correct construction of the garden house is a precisely leveled foundation. The condition of the subsoil is crucial for the execution of the foundation. There should be air circulation between the foundation and the floor elements in order to avoid waterlogging under the garden shed. |
Instructions for the roof coveringNo roofing material is included with the kit. Please ask your dealer for advice on this. |
Treatment with wood protectionThe ground frame of the garden house must be treated with wood impregnation for ground contact before laying. It is highly recommended to use strips or pads made of rubber granules to avoid direct contact with soil moisture. All untreated solid wood elements should be treated with a wood impregnation to prevent damage such as discolouration and wood rot caused by the effects of the weather and moisture. |
Required tools and aids |
Element connections - recommendationAs additional protection against the ingress of moisture, it is recommended to protect the connections of the element frames with suitable silicone during assembly. A strip of silicone is simply applied to the frame of the element to be attached before screwing. |
Packaging dimensions and weight230 x 116 x 69,5 cm (L x W x H), 452 kg |
Wooden Garden products contribute to environmental protection.
The FSC ® label distinguishes those products that have been produced from wood and sourced from environmentally and socially sustainable forests that have been independently certified in accordance with FSC's strict guidelines.
